Product Name

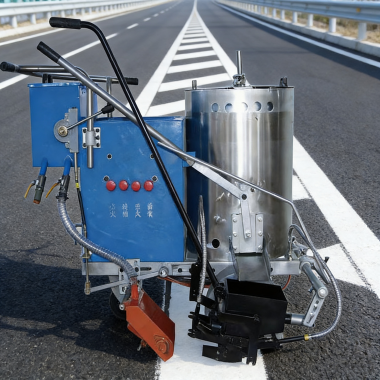

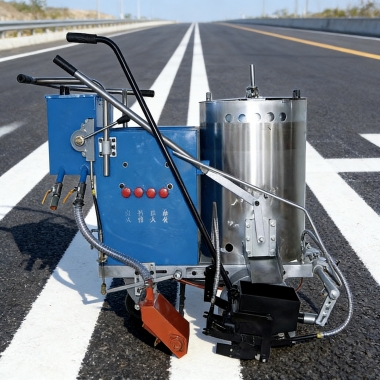

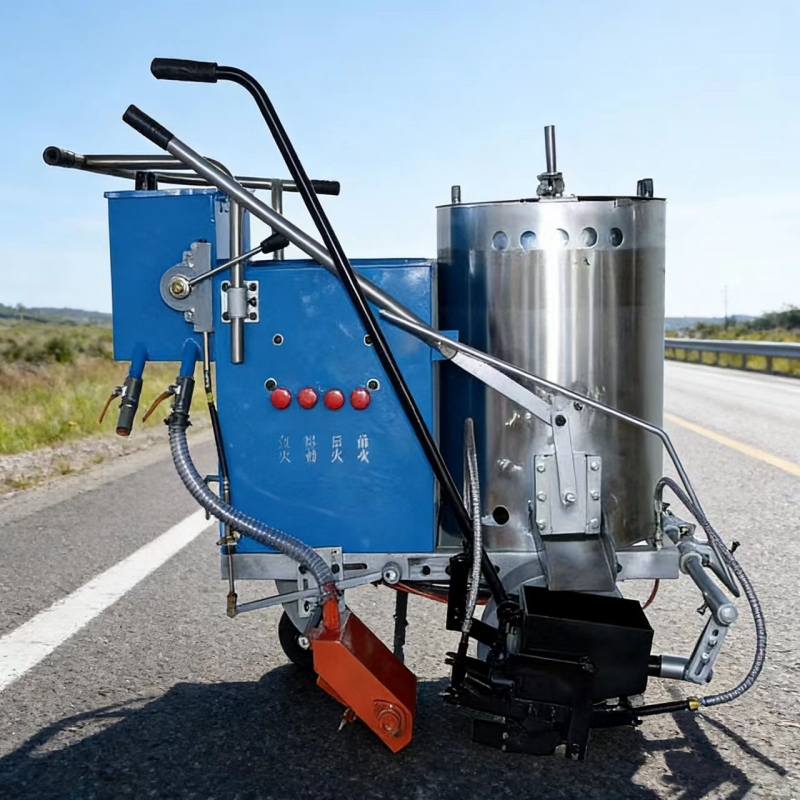

✅ Hand Push Thermoplastic Road Marking Machine

✅ Hot Melt Traffic Line Construction Equipment | Factory Direct Supply

Product Overview

✅ This thermoplastic marking machine is dedicated professional equipment for hot melt road marking construction. It melts thermoplastic paint via heating system, then lays even, wear-resistant, high-reflective traffic lines on pavement by screed coating method.

✅ Powered by LPG heating system, the machine heats up rapidly and delivers stable continuous operation, ideal for expressways, municipal roads, parking lots and all traffic safety marking projects.

✅ Built-in automatic glass bead spreading system greatly boosts night retroreflectivity and road driving safety.

Core Product Features

✅ High-efficiency hot melt operation

⭐ Liquefied petroleum gas heating brings high thermal efficiency for non-stop large-scale marking work.

✅ Adjustable marking thickness

⭐ Coating thickness tunable from 1.5mm to 4mm to match different road grade standards.

✅ Automatic bead spreading assembly

⭐ Integrated glass microbead spreader ensures uniform bead distribution for superior night visibility.

✅ Full stainless steel paint tank

⭐ High temperature and corrosion resistant, extending long service lifespan.

⭐ Heat-resistant soft rubber wheelsStable smooth traveling performance for long-hour continuous construction.

✅ Multiple screed width optionsInterchangeable screeds available: 100mm, 200mm, 300mm, 400mm, 450mm.

Application Scope

✅ Expressway hot melt line construction

✅ Municipal city traffic road marking

✅ Parking bay space lining

✅ Underground garage pavement marking

✅ Factory industrial park road lines

✅ School and residential community traffic sign marking

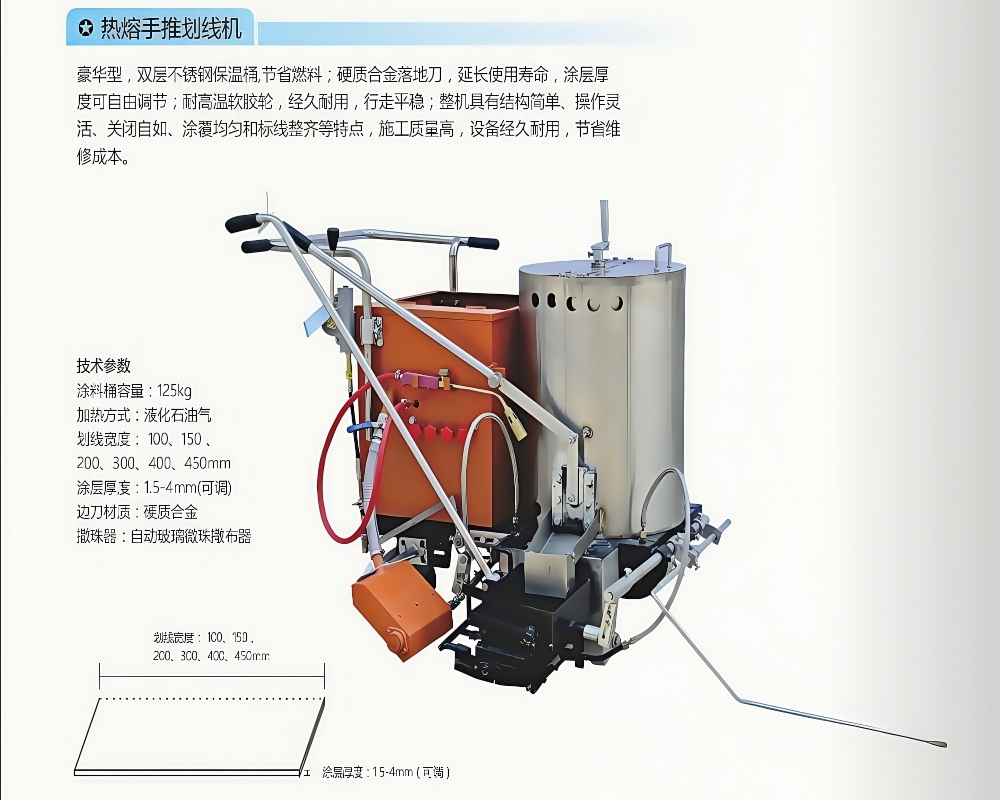

Technical Specifications

Paint tank capacity: 75kg or 100kgHeating fuel: Liquefied petroleum gasStandard marking width: 150mmAdjustable coating thickness: 1.5–4mmEdge cutter material: Hard alloy steelBead spreader: Automatic glass microbead distributorWheel type: High temperature resistant soft rubber wheelsTank material: Full stainless steelOverall dimension: 1300×1000×1050mmTotal machine weight: 140kgOptional interchangeable screed widths: 100/200/300/400/450mm

Performance Advantages

✅ Ultra-smooth flat marking linesStable walking structure produces straight, uniform traffic lines.

✅ Excellent night reflective performanceAuto bead spreader evenly distributes microbeads to strengthen nighttime visibility.

✅ Easy maneuverable operationHand-push design adapts to narrow urban roads and complex job sites.

✅ Robust long-lasting buildConstructed with heavy-duty sturdy components for long-term engineering use.

✅ High construction outputPerfect for uninterrupted large-area hot melt road marking projects.

FAQ

Q1: What is the main usage of thermoplastic marking machine?

✅ It constructs hot melt traffic markings including lane dividers, parking bays, zebra crossings and other road line types.

Q2: Which road sites can this machine work on?

✅ Suitable for highways, municipal streets, parking lots and industrial park pavements.

Q3: Can different line widths be achieved?

✅ Yes, swap out screeds of various sizes as required by project drawings.

Q4: Does it support reflective marking installation?

✅ Equipped with built-in automatic glass bead spreader for reflective line construction.

Q5: What heating fuel systems are available?

✅ Standard LPG heating, diesel heating system is also optional.

Inquiry & Contact

✅ Contact our export sales team for equipment quotations, construction plans and complete technical support documents.

👉 Factory direct cost-effective pricing

👉 Long-term engineering project cooperation available

👉 Custom machine adjustments and professional operation guidance provided
