Products Description

Product Name

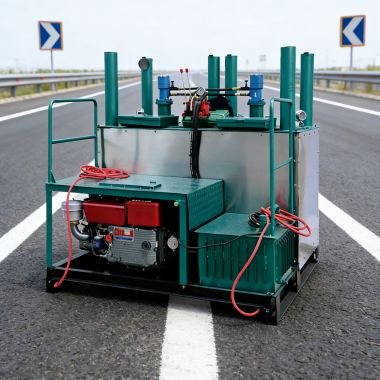

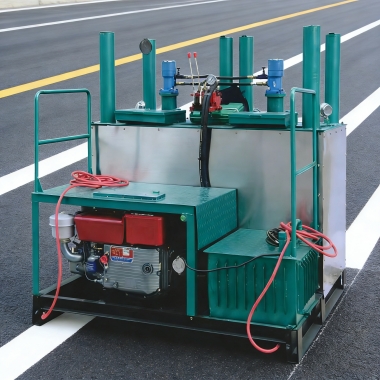

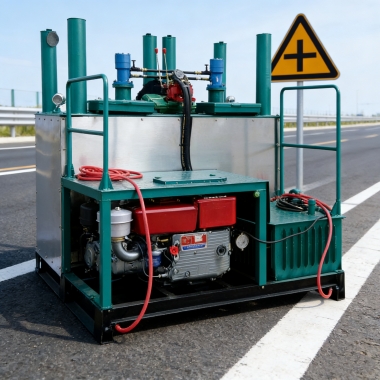

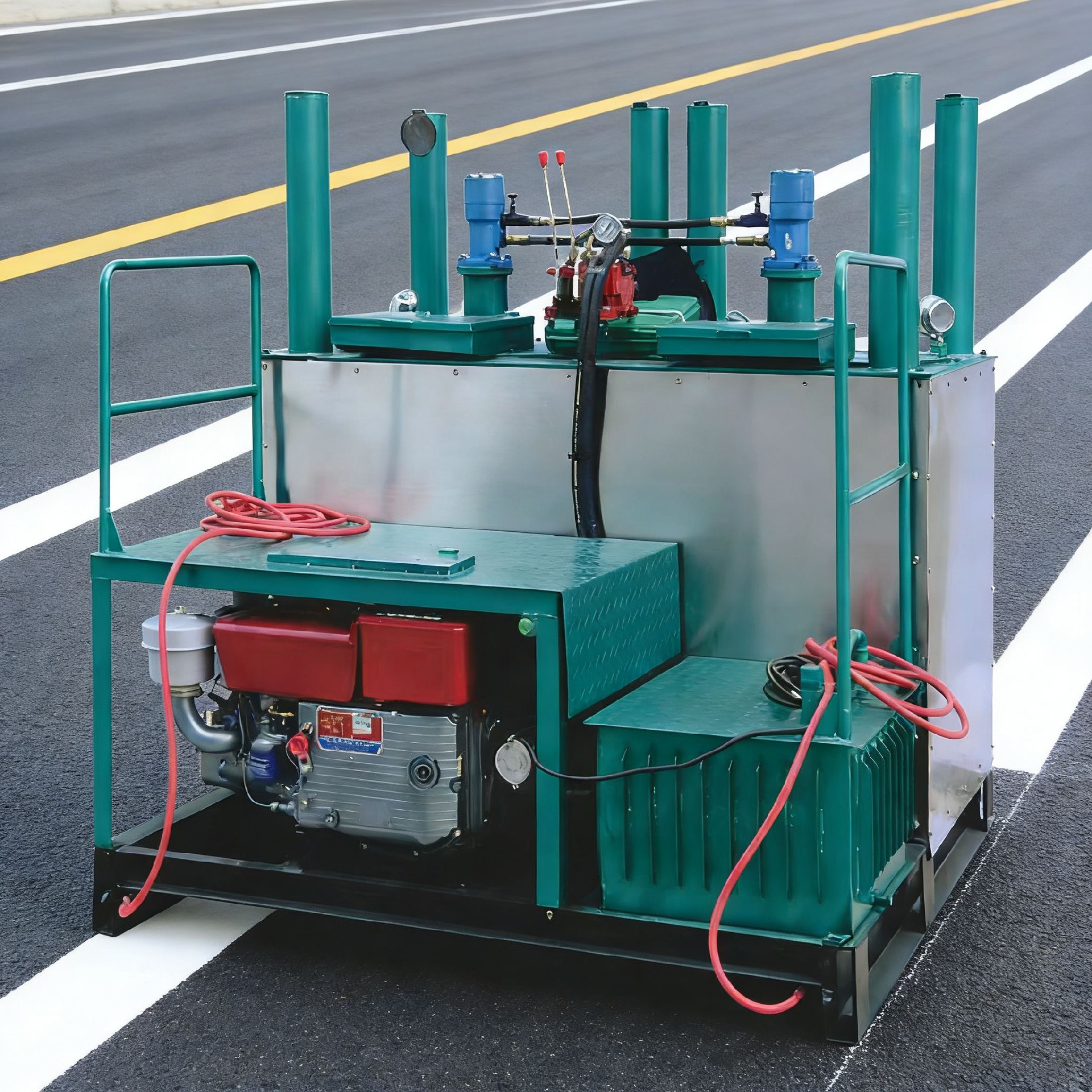

✅ Dual Tank Hydraulic Thermoplastic Melter | Road Marking Paint Melting Pot ✅ Factory Supply Hydraulic Hot Melt Kettle for Road Construction

Product Overview

✅ Designed exclusively for global road construction contractors, our hydraulic double-pot thermoplastic melter is heavy-duty industrial machinery built to liquefy hot-applied road marking thermoplastic coatings. It is widely deployed on international highway networks, municipal paving projects, airport tarmacs, industrial zones and commercial parking lot marking jobs worldwide.

✅ The unit features an independent dual-pot hydraulic drive framework, enabling simultaneous melting of two different color thermoplastic coatings (standard white and yellow traffic grades). This dual-work mode drastically boosts daily paving output for large-scale continuous marking projects. Fitted with heavy-duty diesel direct-injection burners, the system delivers ultra-fast heat ramp-up, superior thermal efficiency and robust heat retention to support non-stop long-distance road works.

✅ Engineered for global operator ease, this melter maximizes diesel fuel economy and integrates a patented glass bead preheating module. This proprietary upgrade directly elevates bonding strength between reflective beads and molten coating, delivering longer-lasting high-visibility night road markings for all climate zones.

Core Product Features

✅ Independent Dual Pot Separate Control

⭐ Equipped with two 600kg capacity coating tanks with fully isolated control circuits. Operators can adjust temperature, stirring speed and melt progress for white and yellow thermoplastic separately at the same time.

✅ Heavy-Duty Hydraulic Drive System

⭐ Full hydraulic power transmission paired with reliable BM series hydraulic motors supporting forward/reverse stirring rotation, delivering stable, low-vibration running even under full-load continuous operation.

✅ Stepless Variable Speed Control with Safety Protection

⭐ Integrated hydraulic reversing valve provides infinitely adjustable stirring speed, plus built-in overflow overload safeguard to prevent motor burnout and reduce on-site operational hazards.

✅ High Efficiency Low-Consumption Diesel Burner Assembly

⭐ Industrial direct-spray energy-saving burners cut diesel consumption significantly while reaching target melting temperatures far quicker than standard melter models, lowering overall project fuel costs.

⭐ Premium Thermal Insulation Structure

Multi-layer aluminum silicate heat insulation lining paired with thickened reinforced flat pot base minimizes heat dissipation, locking in consistent coating melt temperature during long work shifts.

✅ Corrosion-Resistant Stainless Steel Outer Body

Entire outer casing constructed from thick stainless steel sheets, resisting rust, chemical splashes and harsh outdoor weather conditions for extended service life in coastal, humid or dusty construction regions.

✅ Patented Glass Bead Preheating Module

Our bead preheating function holds official national patent certification. Pre-warmed reflective glass beads adhere tighter to thermoplastic lines, greatly improving retroreflective brightness for night traffic safety markings.

Global Application Scenarios

✅ This industrial melter fits all mainstream international road marking works:

⭐ Intercity & national highway thermoplastic line construction

⭐ City municipal street traffic marking contracts

⭐ Shopping mall, commercial & residential parking lot marking

⭐ Urban arterial road and pedestrian crosswalk line projects

⭐ International airport runway & apron pavement marking

⭐ Factory, logistics park and industrial compound road lining

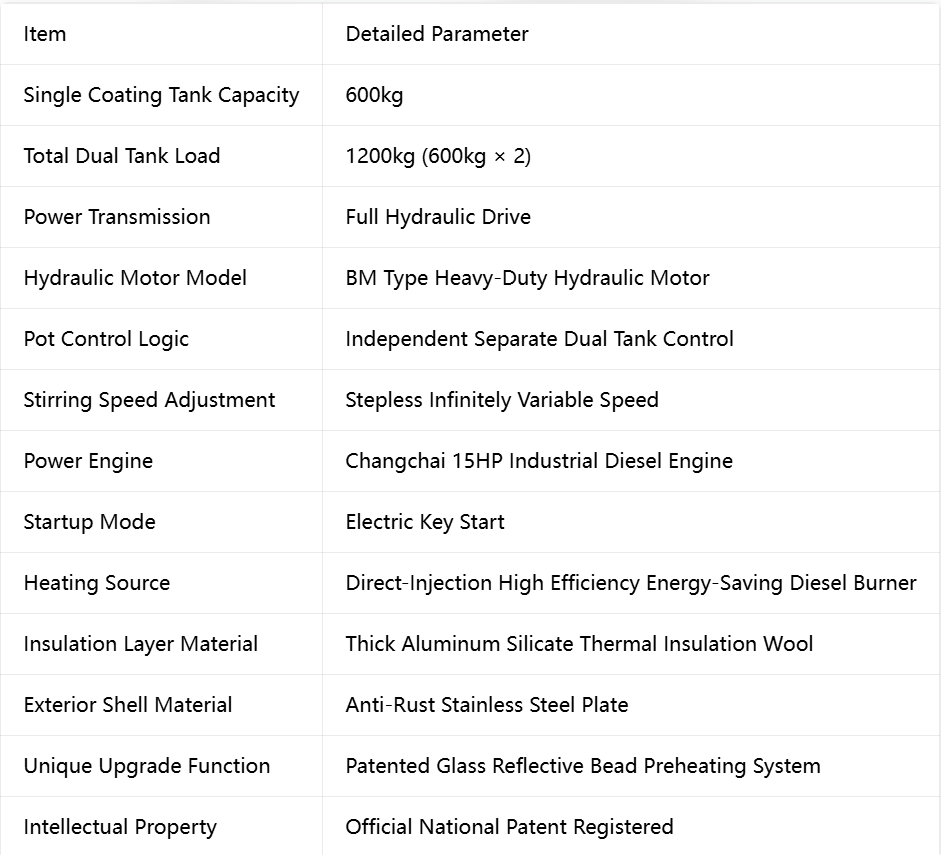

Full Technical Specification Sheet

Competitive Performance Advantages for Global Buyers

✅ Exceptionally Fast Melt ThroughputDual tank layout plus high-output burner assembly cuts coating melting time, raising total daily linear marking footage for large contract jobs.

✅ Significant Diesel Fuel Cost SavingsOptimized burner design + full sealed insulation structure slashes wasted heat energy, reducing total fuel expenditure across long construction campaigns.

✅ Uninterrupted Large-Scale Project CapabilityBuilt for round-the-clock continuous operation, perfectly suited for multi-kilometer highway and municipal bulk marking tenders.

✅ Intuitive, Low-Skill OperationStable responsive hydraulic controls simplify training for overseas work crews, minimizing human error and downtime on job sites.

✅ Superior Long-Term Reflective Mark QualityPreheated glass bead technology delivers stronger bead adhesion, maintaining high retroreflectivity far longer than standard non-preheat melter setups.

Frequently Asked Export Customer Questions

Q1: What primary task does this thermoplastic melter perform on construction sites?

✅ It fully liquefies solid thermoplastic road marking pellets, supplying steady uniform molten coating feed to your marking extrusion/spray line machines.

Q2: Can I run two different marking colors at once with this model?

✅ Yes, the split dual tank design lets you melt white traffic thermoplastic in one pot and yellow thermoplastic in the second tank simultaneously.

Q3: What type of heating burner is installed as standard equipment?

✅ Standard fitment is industrial direct-injection high-efficiency low-fuel-consumption diesel burners, optimized for global standard diesel grades.

Q4: Is this machine robust enough for major highway infrastructure projects?

✅ Fully built for heavy highway contract use; thousands of units deployed on major expressway projects across multiple countries for continuous large-area marking.

Q5: What tangible benefit comes with the glass bead preheating system?

✅ Pre-heated beads bond more firmly into molten thermoplastic, preventing bead drop-off and boosting nighttime retroreflective visibility for safer road traffic.
