ACRYLIC COLD-APPLIED ROAD MARKING PAINT

Fast-Drying Single-Component Traffic Paint for Asphalt Pavement

Acrylic cold-applied road marking paint is a ready-to-use, single-component traffic coating designed primarily for asphalt pavement marking.

Unlike thermoplastic marking materials, it does not require high-temperature melting. The paint can be applied using suitable spraying, rolling or brushing equipment at ambient temperature.

The coating provides clear daytime visibility, fast drying, good adhesion and practical abrasion resistance for municipal roads, parking areas, industrial sites and routine road-marking maintenance.

Standard colors include white, medium yellow, deep yellow, orange-yellow and blue. Customized colors can be produced according to project samples or color references.

⚡ FAST-DRYING FORMULA

The tested white and yellow samples both recorded a dry-to-no-pickup time of 12 minutes under laboratory conditions.

Fast drying helps:

✓ Reduce road closure time
✓ Improve construction efficiency
✓ Minimize traffic disruption
✓ Support small and medium maintenance projects
✓ Allow faster completion of parking and municipal work

Actual drying time varies with temperature, humidity, film thickness, pavement condition and thinner addition.

🪣 READY-TO-USE SINGLE-COMPONENT SYSTEM

This product is supplied as a single-component coating.

It does not require A/B component mixing or chemical hardener dosing, making construction easier for small teams and routine maintenance projects.

Before application:

• Stir the paint thoroughly

• Confirm that no sediment remains at the bottom

• Adjust viscosity only when necessary

• Use only the recommended matching thinner

• Do not mix with incompatible solvents

Excessive thinner can reduce covering power, film thickness, drying performance and durability.

🔗 ADHESION TO ASPHALT PAVEMENT

The acrylic resin system is designed to bond effectively to properly prepared asphalt surfaces.

For reliable adhesion, the pavement must be:

✓ Clean
✓ Completely dry
✓ Free from dust
✓ Free from oil and grease
✓ Free from loose aggregate
✓ Free from poorly bonded old paint

New asphalt should be allowed to stabilize before marking. A small trial area is recommended when the pavement contains surface oil, curing residue or an unfamiliar asphalt formulation.

For concrete application, surface preparation and a compatible primer may be required. Conduct an adhesion test before large-scale construction.

🛡️ PRACTICAL WEAR RESISTANCE

The cured coating provides abrasion resistance suitable for routine traffic marking applications.

The supplied test reports recorded abrasion-loss results of:

• White coating: 36.0 mg

• Yellow coating: 30.5 mg

Actual durability depends on:

✓ Traffic volume
✓ Vehicle type
✓ Braking and turning frequency
✓ Applied film thickness
✓ Pavement texture
✓ Surface preparation
✓ Local climate

High-wear intersections, heavy-truck turning areas and expressway projects should use the film thickness and reflective system specified in the engineering design.

☀️ OUTDOOR WEATHER PERFORMANCE

The acrylic coating is formulated for outdoor pavement use and provides resistance to normal:

✓ Sunlight exposure
✓ Rainfall
✓ Seasonal temperature changes
✓ Road dust
✓ Traffic abrasion
✓ Municipal cleaning

Actual service life varies with construction quality, traffic conditions, pavement stability and environmental exposure.

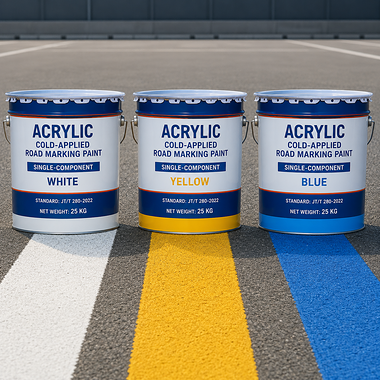

🎨 AVAILABLE COLORS

Standard Colors

✓ White
✓ Medium Yellow
✓ Deep Yellow
✓ Orange-Yellow
✓ Blue

Customized Colors

Red, green, grey, black and other project colors can be produced subject to sample confirmation and production requirements.

Color appearance may vary under different lighting conditions. Project colors should be approved using a physical sample before bulk production.

📊 VERIFIED TEST DATA

White Acrylic Road Marking Paint

Report No.: 2025-CA02-323
Referenced Standard: JT/T 280-2022
VOC Content: 331 g/kg
Density: 1.44 g/cm³
Viscosity: 149
Dry-to-No-Pickup Time: 12 min
White Covering Power: 98%
Solid Content: 66.9%
Abrasion Loss: 36.0 mg
Flexibility: 2 mm
Luminance Factor: 0.87
Chromaticity Coordinate x: 0.318
Chromaticity Coordinate y: 0.336

Yellow Acrylic Road Marking Paint

Report No.: 2025-CA02-324
Referenced Standard: JT/T 280-2022
VOC Content: 321 g/kg
Density: 1.46 g/cm³
Viscosity: 149
Dry-to-No-Pickup Time: 12 min
Yellow Covering Power: 84%
Solid Content: 67.9%
Abrasion Loss: 30.5 mg
Flexibility: 2 mm
Luminance Factor: 0.49
Chromaticity Coordinate x: 0.523
Chromaticity Coordinate y: 0.445

Test values apply to the submitted white and yellow samples covered by the supplied reports. Other colors and customized formulations should be confirmed using the corresponding batch documents.

⚙️ PRODUCT SPECIFICATIONS

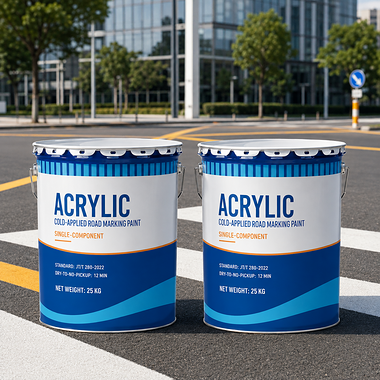

Product Name: Acrylic Cold-Applied Road Marking Paint
Material Type: Acrylic Resin-Based Traffic Paint
Component Type: Single-Component

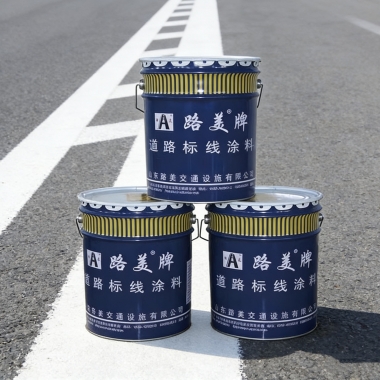

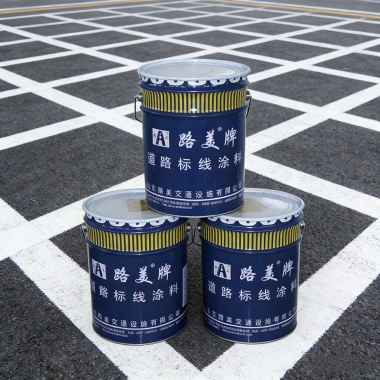

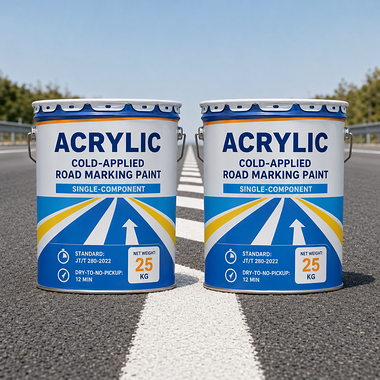

Standard Packaging: 25 KG/Pail
Standard Colors: White, Yellow and Blue
Custom Colors: Available
Application Temperature: 5–45°C
Optimal Temperature: Approximately 20°C
Application Methods: Spray, Roller or Brush
Recommended Surface: Asphalt Pavement
Drying Method: Solvent Evaporation
Special Thinner: Matching Thinner Available
Referenced Standard: JT/T 280-2022

🛣️ RECOMMENDED APPLICATIONS

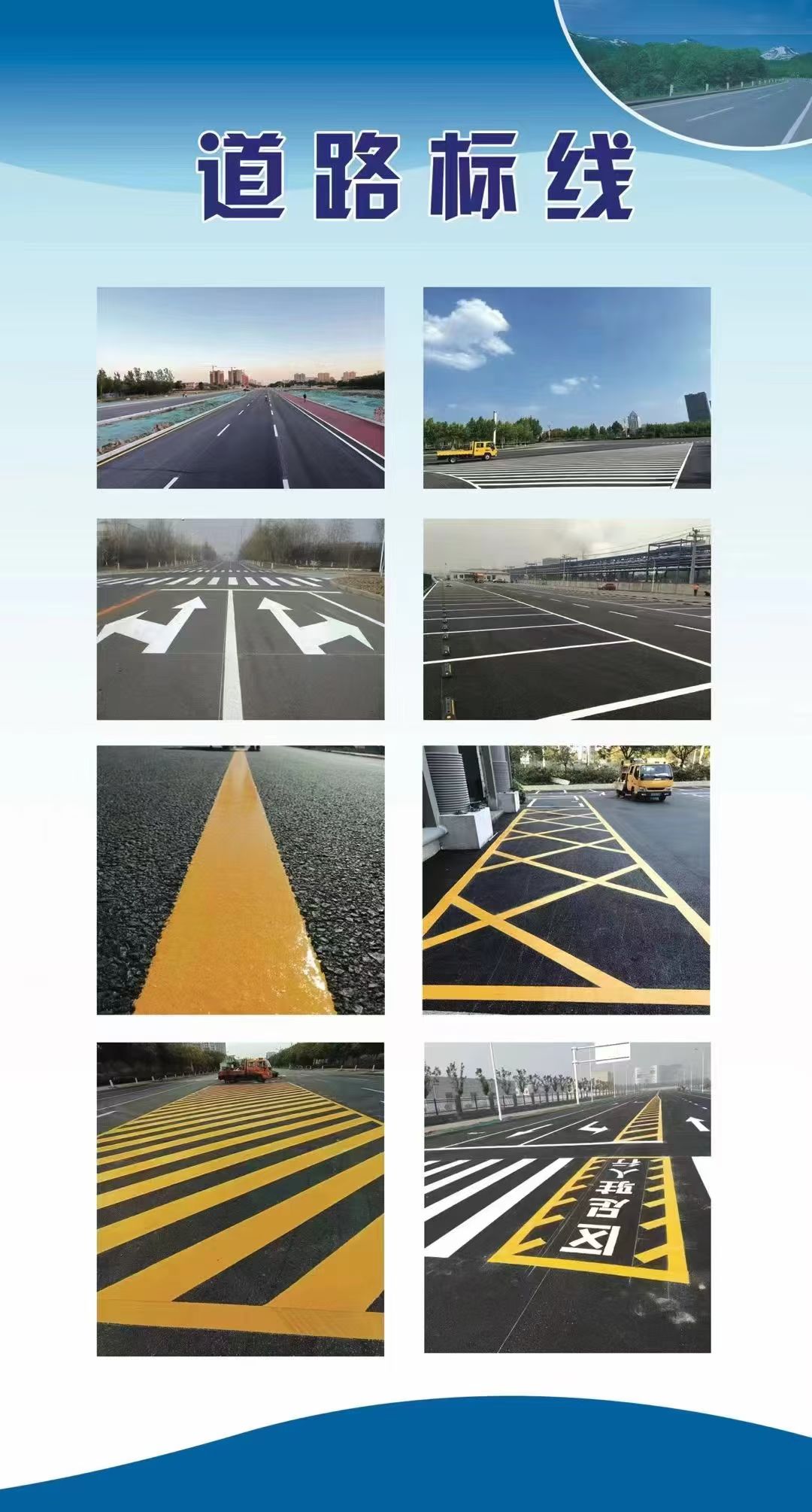

✓ Urban road markings
✓ Municipal street markings
✓ Parking lot lines
✓ Industrial park traffic routes

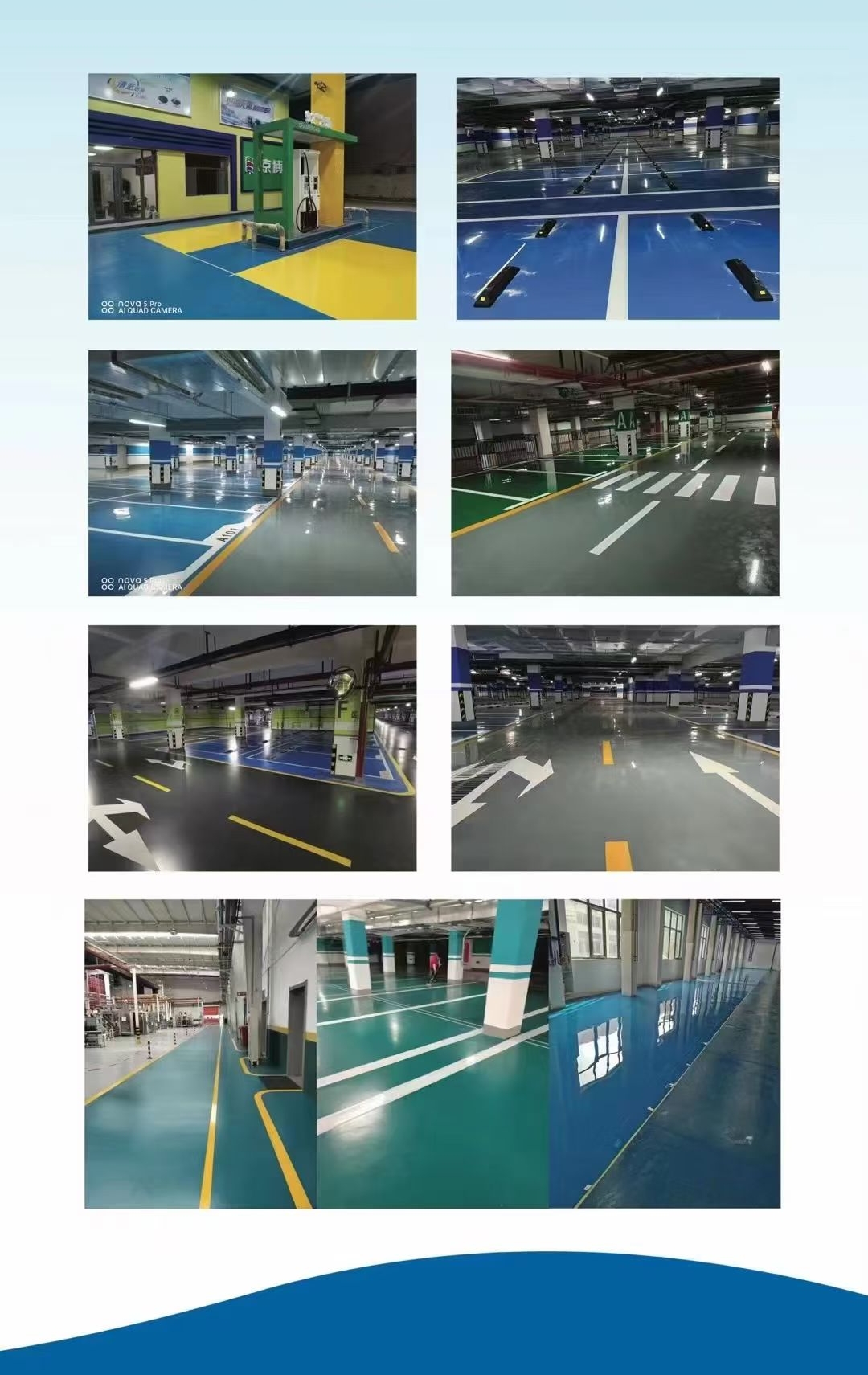

✓ Factory floor traffic areas
✓ Warehouse and logistics zones
✓ Residential community roads
✓ School and hospital parking areas
✓ Road maintenance and repainting
✓ Temporary traffic management markings
✓ Low- and medium-traffic asphalt roads
✓ Direction arrows and parking symbols

Project suitability should be confirmed according to traffic volume, pavement type and local specification requirements.

🧰 APPLICATION METHODS

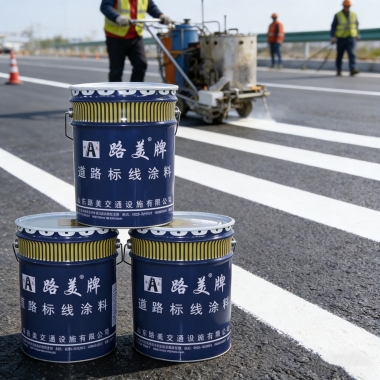

Airless Spray

Recommended for efficient application of long road lines and larger municipal projects.

Conventional Spray

Suitable when the paint viscosity and spray equipment are correctly matched.

Roller Application

Suitable for parking spaces, symbols, arrows and small maintenance areas.

Brush Application

Suitable for edges, details, numbers and localized repair work.

For reflective markings, compatible drop-on glass beads may be applied while the paint surface is still wet.

🏗️ APPLICATION PROCEDURE

1. Inspect the Pavement

Confirm that the asphalt surface is stable, clean and completely dry.

2. Clean the Surface

Remove dust, loose aggregate, mud, oil, grease and poorly bonded old paint.

3. Mark the Layout

Use chalk lines, masking tape or suitable road-layout equipment to establish the required marking position.

4. Stir the Paint

Mechanically stir until the color and consistency are completely uniform.

5. Adjust Viscosity if Required

Add only the recommended special thinner and use the minimum quantity required for the selected equipment.

6. Apply the Paint

Apply evenly by spraying, rolling or brushing at the specified width and film thickness.

7. Apply Glass Beads if Required

Distribute compatible drop-on beads immediately after paint application while the surface remains receptive.

8. Protect the Marking

Prevent vehicles, pedestrians, water and contamination from contacting the paint before it reaches sufficient dryness.

🌡️ APPLICATION CONDITIONS

Recommended Application Temperature: 5–45°C
Optimal Working Temperature: Approximately 20°C

Do not apply when:

• The pavement is wet

• Rain is expected before drying

• Surface condensation is present

• The pavement contains oil or loose material

• Wind may cause excessive spray drift

• Ambient conditions prevent normal solvent evaporation

Low temperatures and high humidity may extend drying time. High temperatures may shorten working time and increase solvent evaporation.

⚖️ THEORETICAL MATERIAL CONSUMPTION

Material consumption depends on paint density, wet-film thickness, pavement texture and application loss.

As a general purchasing reference:

• Smooth pavement and thin application require less material

• Rough asphalt absorbs more paint

• Repainting old lines may require additional material

• Spray equipment normally produces some application loss

• Drop-on glass beads should be calculated separately

Provide the following information for a project estimate:

• Total marking length

• Marking width

• Required film thickness

• Pavement condition

• Application method

• Number of coats

⚠️ STORAGE AND SAFETY

✓ Store in a cool, dry and ventilated location.
✓ Keep containers tightly closed when not in use.
✓ Protect from heat, sparks and open flame.
✓ Keep away from incompatible chemicals.
✓ Use suitable gloves, protective clothing and eye protection.
✓ Provide adequate ventilation during application.
✓ Follow the product Safety Data Sheet.
✓ Do not pour unused paint or thinner into drains.
✓ Dispose of paint residue and packaging according to local regulations.

This is a solvent-based coating. Appropriate fire prevention and ventilation measures are required.

⭐ KEY PRODUCT BENEFITS

✓ Single-component and easy to use
✓ No high-temperature melting required
✓ Tested 12-minute dry-to-no-pickup time
✓ Suitable for spray, roller and brush application
✓ White, yellow and blue colors available
✓ Customized colors supported
✓ Good adhesion to prepared asphalt pavement
✓ Practical abrasion resistance
✓ Suitable for new markings and maintenance work
✓ 25 KG export packaging
✓ Matching thinner available
✓ Technical application support available

❓ FREQUENTLY ASKED QUESTIONS

Q1: Does this paint require a hardener?

No. It is a single-component coating and does not require Component B or a separate hardener.

Q2: Is the paint ready to use?

The paint should be stirred thoroughly before use. A small amount of matching thinner may be added when required by the application equipment.

Q3: How quickly does it dry?

The tested white and yellow samples both recorded a dry-to-no-pickup time of 12 minutes under laboratory conditions. Actual drying time depends on site conditions.

Q4: Can ordinary thinner be used?

Using an unknown thinner is not recommended. An incompatible solvent may cause separation, poor drying, reduced adhesion or color variation. Use the matching thinner supplied or approved by the manufacturer.

Q5: Can it be applied to concrete?

The product is primarily recommended for asphalt. Concrete application may require mechanical preparation and a compatible primer. Conduct a test area before full construction.

Q6: Can reflective glass beads be applied?

Yes. Compatible drop-on glass beads can be distributed while the paint surface is still wet.

Q7: Can custom colors be produced?

Yes. Custom colors can be matched according to a physical sample or agreed color reference.

Q8: Is this a low-VOC or solvent-free product?

No such claim should be made. The supplied reports recorded VOC values of 331 g/kg for white and 321 g/kg for yellow. Appropriate ventilation and handling controls are required.

Q9: How long will the marking last?

Service life depends on traffic, pavement condition, film thickness, application quality and climate. A fixed lifespan cannot be guaranteed without reviewing the project conditions.

Q10: What packaging is available?

The standard export packaging is 25 KG per metal pail.

🤝 EXPORT AND PROJECT SUPPORT

Contact our export sales team for:

✓ Factory quotations
✓ Product samples
✓ White and yellow inspection reports
✓ Technical Data Sheet
✓ Safety Data Sheet
✓ Matching thinner
✓ Glass bead recommendations
✓ Custom color matching
✓ Material consumption calculations
✓ Export packaging information
✓ Container loading plans
✓ Remote application guidance
